QT Full-automatic

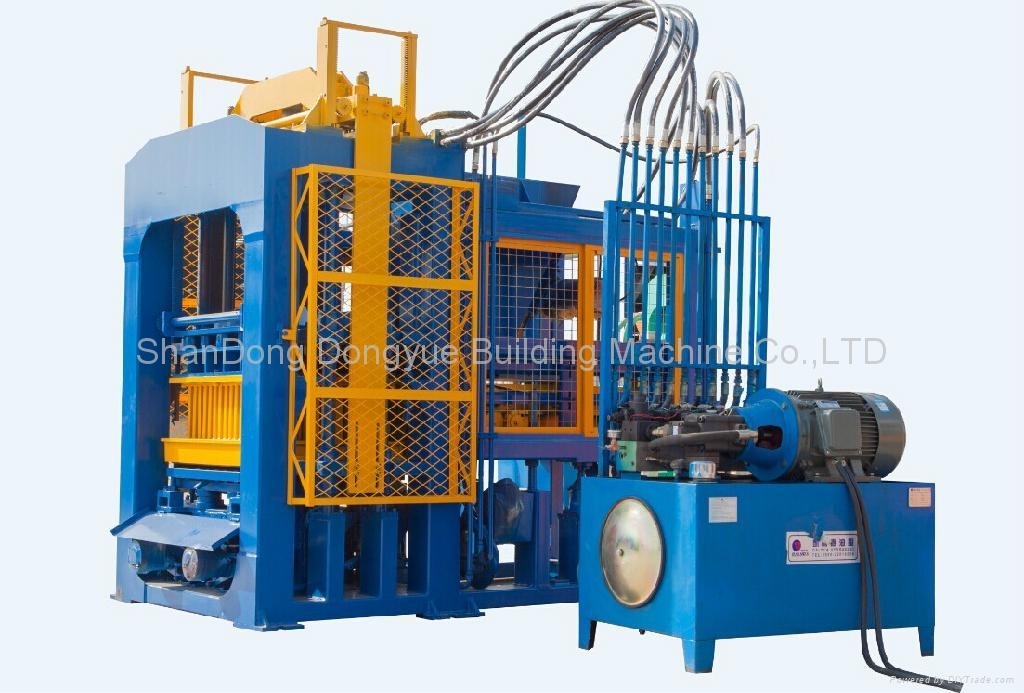

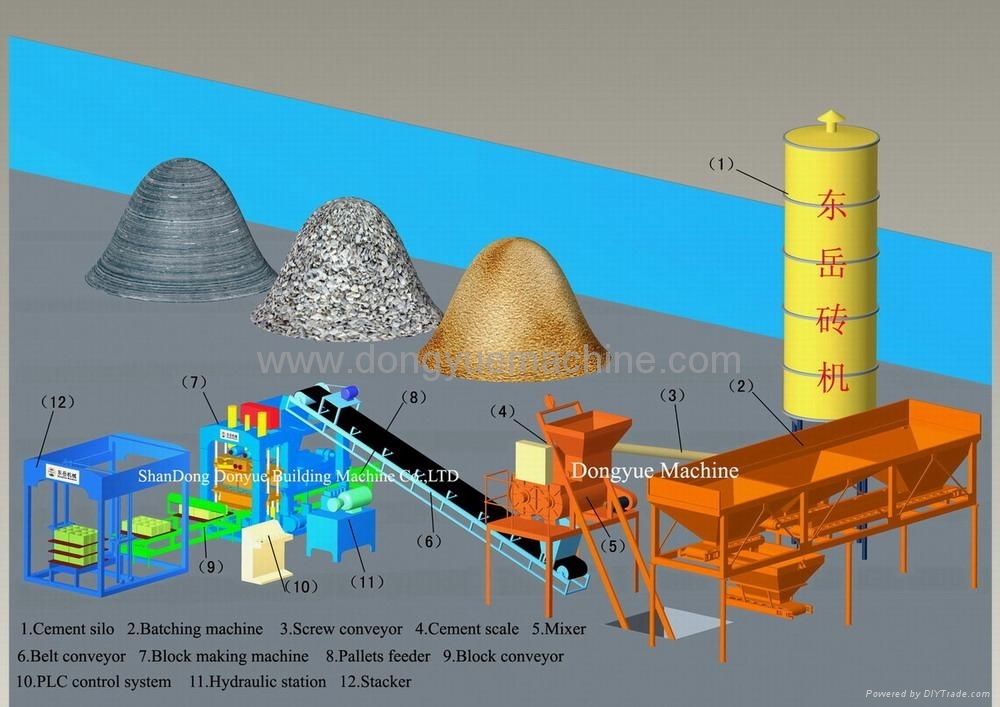

QT10-15 automatic block machine line

1 QT10-15 introduce
1.Production capacity

Size(LxWxH)

Pcs/Mould

Pcs/ Hr

Pcs/ 8 Hr

400X100X200

24

3600-5040

28800-40320

400X150X200

18

2700-3780

21600-30240

400X200X200

10

1500-2100

12000-16800

400X250X200

9

1350-1890

10800-15120

2.Main technical parameters

Dimension of host machine	3500×2220×2850mm	Host machine power	45.38KW
Moulding area	1025×810mm	Vibration force	100KN
Moulding period	15-25S	Mixer model	JS1000
The size of the pallet	1350×900×30mm	General water Consumption	12T/every day
Weight of the host machine	14T
Voltage	380V

3. Simple introduce

Our company specializing in producing and exporting many kinds of block machines.We can produce full-automatic block making machines for many years. we can design many kinds of mould according your needs.

Now,Agile ,Durable,High Produces,Perfect service Brick machines have attracted more and more people ,and the products are popular in the abroad .

High quality and perfect service are my purpose forever .Our Quality management system has been awarded this certificate for compliance with the standards GB/T19001-2000idt ISO9001:2000 and CE certificate

Payment Terms︰

T/T or L/C

QT9-15 Automatic block machine line

QT9-15 block machine introduce

1. Main Parameter

Dimension of host machine	2900×2600×2900mm	Host machine power	42KW
Moulding area	1280×600mm	Vibration force	80KN
Moulding period	15-20S	Capacity	102.3KW
The size of the pallet	1350×780×25/30mm	Mixer model	JS750
Weight of the host machine	13.5T	Genetal water Consumption	10T/every day
Voltage	380V

2. production

QT9-15 block machine Production capacity
Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/ 8 Hr	m3/year
400X100X200	18	3240-4320	25920-34560	62208-82944
400X150X200	15	2700-3600	21600-28800	77760-103680
400X200X200	9	1620-2160	12960-17280	62208-82944
400X250X200	6	1080-1440	8640-11520	51840-69120

Payment Terms︰

T/T or L/C

QT8-15 Automatic block machine line

QT8-15 block machine introduce

1. Main Parameter QT8-15 Main technical parameters

Dimension of host machine	3000×2200×2950mm	Host machine power	34KW
Moulding area	800×820mm	Vibration force	60KN
Moulding period	15-20S	Capacity	93.55KW
The size of the pallet	940×900×25mm	Mixer model	JS750
Weight of the host machine	12.5T	Genetal water Consumption	9T/every day
Voltage	380V

2. Production

QT8-15 block machineProduction capacity
Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/ 8 Hr	m3/year
400X100X200	14	2520-3360	20160-26880	48384-64512
400X150X200p>	10	1800-2400	14400-19200	51840-69120
400X200X200	8	1440-1920	11520-15360	55296-73728
400X250X200	6	1080-1440	8640-11520	51840-69120

Payment Terms︰

T/T or L/C

QT6-15 Automatic block machine line

QT6-15 block machine line
1. Main Parameter

QT6-15A Main technical parameters

Dimension of host machine	2650×2200×2780mm	Host machine power	32KW
Moulding area	800×600mm	Vibration force	45KN
Moulding period	15-20S	Capacity	78.25KW
The size of the pallet	940×830×20/25mm	Mixer model	JS500
Weight of the host machine	8.7T	Genetal water Consumption	6T/every day
Voltage	380V

QT6-15B Main technical parameters

Dimension of host machine	2850×2200×2850mm	Host machine power	32KW
Moulding area	800×600mm	Vibration force	45KN
Moulding period	15-20S	Capacity	91.55KW
The size of the pallet	940×830×20/25mm	Mixer model	JS750
Weight of the host machine	11.5T	Genetal water Consumption	8T/every day
Voltage	380V

2. Production

QT6-15A Production capacity
Size(LxWxH)	Pcs/ Mould	Pcs/ Hr	Pcs/ 8 Hr	m3/year
400X100X200	12	1800-2520	14400-20160	34560-48384
400X150X200	8	1200-1680	9600-13440	34560-48384
400X200X200	6	900-1260	7200-10080	34560-48384
400X250X200	4	600-840	4800-6720	28800-40320
QT6-15B Production capacity
Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/ 8 Hr	m3/year
400X100X200	12	2160-2880	17280-23040	41472-55296
400X150X200	8	1440-1920	11520-15360	41472-55296
400X200X200	6	1080-1440	8640-11520	41472-55296
400X250X200	4	720-960	5760-7680	34560-46080

QT4-15B block machine

QT4-15 Semi Automatic Block Machine Specification

forming machine main theoretical data

Dimension of host machine

2440×2000×2600mm

control style

PLC

forming style

Hydraulic

Vibration force

40KN

vibrator style

table and mould vibrate togather

raw material feeding style

360 degree revole

forming hight

40-250mm

moulding period

15-20S

moulding aera

400×800mm

size of pallet

1010×550×20/25mm

weight of host machine

7.6T

Mixer style

JS500

General water Consumption

5T/day

Voltage

220/240/380/440V

Simple block machine line area needed

Workshop

150m2

Office

100m2

Total area

About 1500m2

Worker arrangement

operate

1

Material loader

1

Drive forklift

1

Feeding pallets

1

Maintain

1

Total

5

Production capacity

Size(L x W x H)

Pcs /Mould

Pcs / Hr

400X100X200

8

1200-1920

400X150X200

6

900-1440

400X200X200

4

600-960

400X250X200

3

450-720
