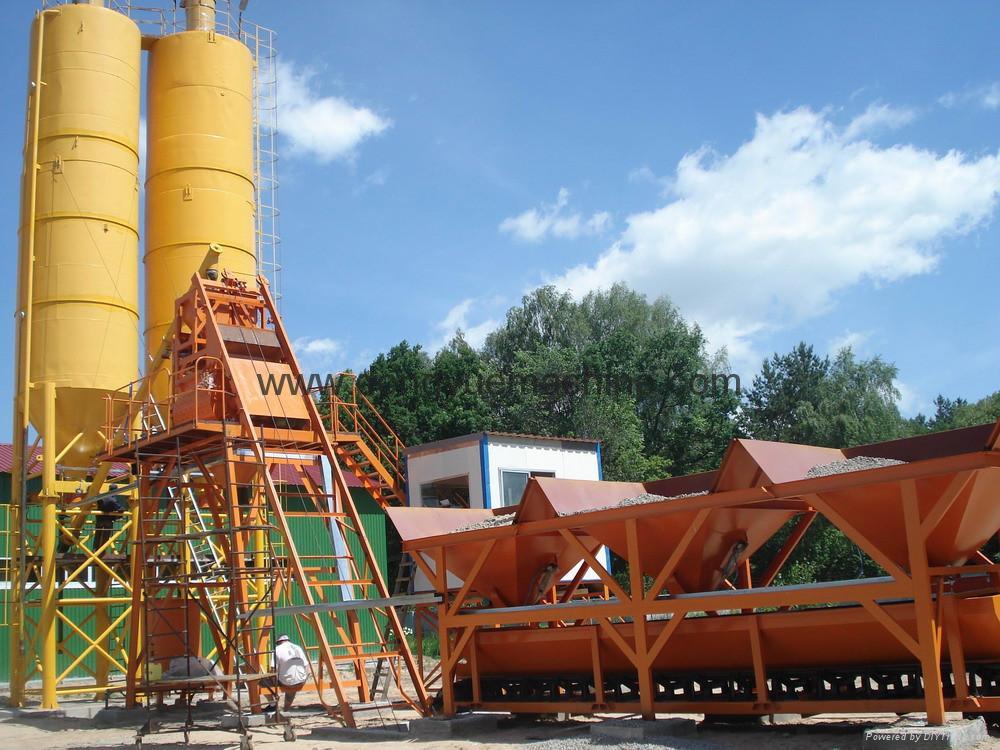

Concrete Mixing Plant

Products Introduce
HZS series of concrete mixing plant combined with international advanced technology and advantages ,also absorb China local requirement and experience . The series of product have passed Europe CE standard also  our company have pass the ISO9001:2008 . now our productions have to export to  many country .

 Our concrete plant have following advantage: Absorb Germany and Japan automatic control experience, have the local maintaince cost .,easy to operate and repair , long time after sale service .

                       HZS series concrete mixing plant technical parameters
Model HZS40 HZS50 HZS75 HZS100 HZS150 HZS200
Production in theorym
(3/h)
40 50 75 100 150 200
Mixing engine JS750 JS1000 JS1500 JS2000 JS3000 JS4000
Measuring scope and precision Aggregate(kg) 2000±2% 2500±2% 3500±2% 4500±2% 6500±2% 9000±2%
Cement(kg) 600±1% 800±1% 900±1% 1200±1% 1800±1% 2400±1%
Mingled materials(kg) 600±1% 800±1% 500±1% 600±1% 900±1% 1200±1%
Water(kg) 200±1% 300±1% 400±1% 500±1% 800±1% 1000±1%
Additives(kg) 20±1% 30±1% 30±1% 50±1% 80±1% 100±1%
Distributing plant PL1200 PL1600 PL2400 PL3200 PL4800 PL6400
Raw material silo   according  customers’demands.
General power(kw) 65 80 105 125 175 220
Discharging height(m) 2.8/3.8 2.8/3.8 2.8/3.8 2.8/3.8 2.8/3.8 2.8/3.8
