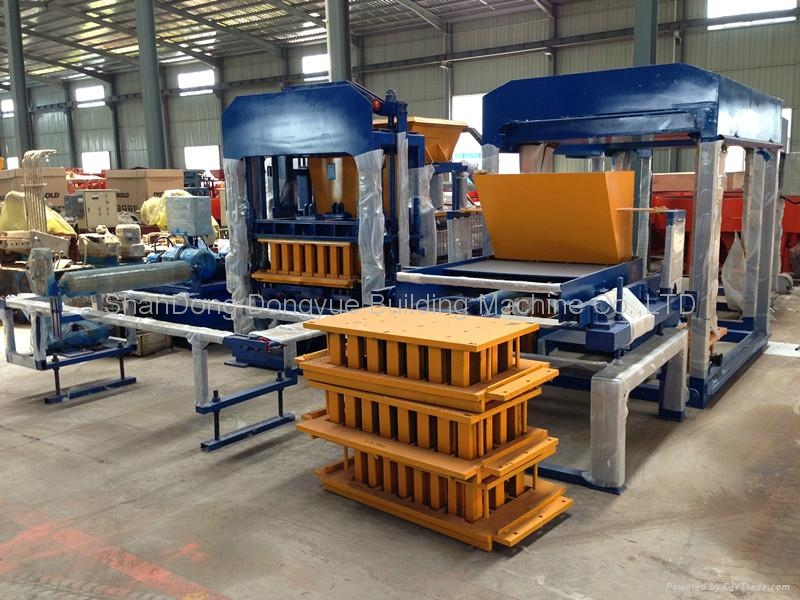

Automatic Hydraulic Fly ash Brick Machine

  • Automatic Hydraulic Fly ash Brick Machine
  • Automatic Hydraulic Fly ash Brick Machine
  • Automatic Hydraulic Fly ash Brick Machine
  • Automatic Hydraulic Fly ash Brick Machine
Model No.︰QT4-15C
Brand Name︰DongYue
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 16 Related Items
Prev1213141516

Product Description

Automatic fly ash brick machine,hollow block machine,cement brick machine Introduction

1.automatic fly ash brick machine Introduce

 1)Absorb Germany technology


2) with the best brand Motor, PLC ,Competitive price


3) the automatic fly ash brick making machine with CE standard


4)can produce many kinds of fly ash brick,hollow block,solid bricks,paver blocks,cuberstone just change the moulds.



2.Hollow block machine advange




1) hollow block machine is controlled by PLC and fitted with remote control device.for PLC control system ,we usually use Japan Mitsubishi or Taiwan Brand  .


2 ) hollow block machine electricity motor for host machine we use Germany Siemens motor ,for other parts ,we use CE motor .


3) hollow block machine switches ,we will use France Schneider or China CHNT


4)Rakes in several rows make sure raw materials fed well-distributed.


5) Hydraulic components we use Taiwan JiuGang famous brands.


6) The demoulding synchronizer avoids the damage to concrete products.


7) The vibration system contain two part ,one is up-moild vibbration box ,it is electricity motor to supply the power for up-mould vibration box. And the down mould ,there have one big vobration .when the scatter material work finish ,the hydraulic power with the two vibration power will assure the good quality for product


8)hollow block machine mould is processed with carburizing,nitriding, wolfram carbide and quenching which

ensures its strength reach to 54~58 HRC and can be used 100 thousand times.


3.Cement brick machine Main technical parameter
Dimension of host machine :4000x1800x2800
Weight of host machine    :5.5T
Molding area    :1006x600
Water consumption  :5-6Ton/day
workshop area    :  250-300m2
Host machine power : 29.85kw
Vibration force  : 40-50KN
Mixer model : JS500
Pallet size  :1010x550x25mm
Voltage     : 380/415/440V

4.Concrete block machine Theoretical production capacity
Size(LxWxH)           Pcs/Mould           Pcs/Hour        Pcs/Shift
400x200x200mm            4        720-840        5760-6720
400x100x200mm            8        1440-1680    11520-13440
400x150x200mm            6        1080-1260    8640-10080
400x250x200mm            3        540-630        4320-5040
230x110x70mm            24        4320-5040    34560-40320
200x100x60            16        2880        23040
200x163x60            8        1440        11520

Payment Terms︰T/T,L/C
