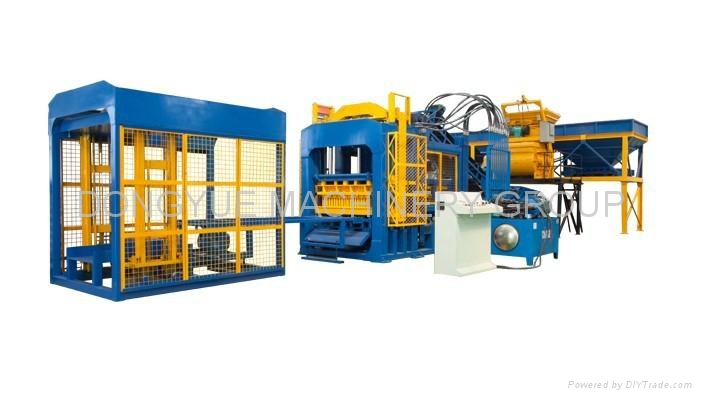

| QT10-15 Block Machine,Block making machine,cement block machine |
|
|
| Model No.︰ | QT10-15 |
| Brand Name︰ | dongyue |
| Country of Origin︰ | China |
| Unit Price︰ | USD $ 70000 / pc |
| Minimum Order︰ | 1 pc |
|
|
|
|
|
1.Automatic Block Machine Introduce
1)Absorb Germany technology
2) with the best brand Motor, PLC ,Competitive price
3) the automatic fly ash brick making machine with CE standard
4)can produce many kinds of fly ash brick,hollow block,solid bricks,paver blocks,cuberstone just change the moulds.
2.Automatic Block Machine advange
1) Automatic Block Machine is controlled by PLC and fitted with remote control device.for PLC control system ,we usually use Japan Mitsubishi or Taiwan Brand .
2 ) Automatic Block Machine electricity motor for host machine we use Germany Siemens motor ,for other parts ,we use CE motor .
3)Automatic Block Machine switches ,we will use France Schneider or China CHNT
4)Rakes in several rows make sure raw materials fed well-distributed.
5) Hydraulic components we use Taiwan JiuGang famous brands.
6) The demoulding synchronizer avoids the damage to concrete products.
7) The vibration system contain two part ,one is up-moild vibbration box ,it is electricity motor to supply the power for up-mould vibration box. And the down mould ,there have one big vobration .when the scatter material work finish ,the hydraulic power with the two vibration power will assure the good quality for product
8)The mould is processed with carburizing,nitriding, wolfram carbide and quenching which ensures its strength reach to 54~58 HRC and can be used 100 thousand times.
3.Automatic Block Machine production
|
Size(LxWxH)
|
Pcs/Mould
|
Pcs/ Hr
|
Pcs/ 8 Hr
|
|
400X100X200
|
20
|
3000-3600
|
24000-28800
|
|
400X150X200
|
14
|
2100-2520
|
16800-20160
|
|
400X200X200
|
10
|
1500-1800
|
12000-14400
|
|
400X250X200
|
8
|
1200
|
9600
|
|
Paver:200X100X60
|
35
|
5250
|
42000
|
|
Paver:200X165X60
|
20
|
3000
|
24000
|
4.Automatic block machine parameter
|
Dimension of host machine
|
3500×2220×2850mm
|
Host machine power
|
45.38KW
|
|
Moulding area
|
1025×810mm
|
Vibration force
|
100KN
|
|
Moulding period
|
15-25S
|
Mixer model
|
JS750
|
|
The size of the pallet
|
1350×900×30mm
|
General water Consumption
|
12T/every day
|
|
Weight of the host machine
|
14T
|
Voltage
|
380V
|
|
|
|
|
