High Quality 10ton Szl Series Packaged Industrial Steam Boiler

  • High Quality 10ton Szl Series Packaged Industrial Steam Boiler
  • High Quality 10ton Szl Series Packaged Industrial Steam Boiler
  • High Quality 10ton Szl Series Packaged Industrial Steam Boiler
  • High Quality 10ton Szl Series Packaged Industrial Steam Boiler
  • High Quality 10ton Szl Series Packaged Industrial Steam Boiler
  • High Quality 10ton Szl Series Packaged Industrial Steam Boiler
  • High Quality 10ton Szl Series Packaged Industrial Steam Boiler
Model No.︰SZL series
Brand Name︰DONGYUE
Country of Origin︰China
Unit Price︰US $ 50000 / set
Minimum Order︰1 set
Share on:

 Total 49 Related Items
Prev12345Next

Product Description

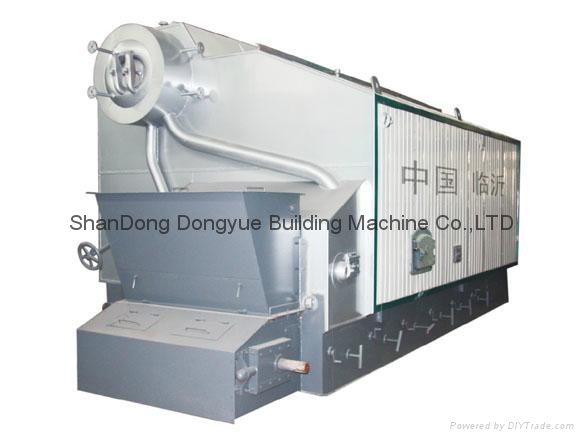

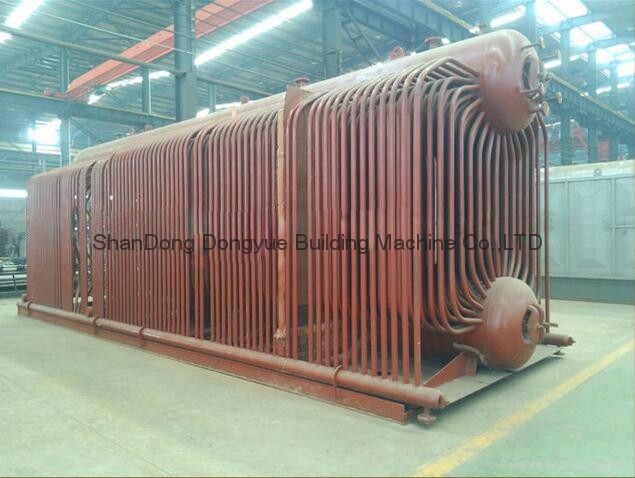

High Quality 10ton Szl Series Packaged Industrial Steam Boiler



SZL series packaged steam boiler



Product features

1. The boiler shall be equipped with horizontal cyclone reburning chamber of an original creation in the home market, featuring the obvious effect of increasing combustion efficiency and decreasing smoke discharge density which is lesser than 80mg/Nm3, and at the same time cleaning fume, of which the blackness is less than I lingemann, meeting the requirements’ of grade I environmental protection area.

2. The boiler thermal efficiency is high, every kind of which shall exceed 5 per cent of national standard.

3. The water tube boiler features the following advantages: rational structure, safe operation, and long boiler life.

4. The air register shall employ cone seal structure of machining equipment, and the uniform blast dust structure shall be applied to air distribute device of wind chamber, which is environmental patent technology of state.

5. Many kinds of fuel shal be applicable,including ii and iii coal.

6. Because of compact structure, small floor area, and monolayer arrangement of the boiler room, the cost of the boiler house and installation shall be economized.

7. The boiler was awarded the following title: first class products of mechanical and electrical department, environmental products trusted by the national users, excellent energy-saving products promoted by state, excellent energy-saving products of shandong province.

8. According to the customers’ requirements, the layering burn device and other energy saving equipments, implemented in state, shall be matched.



Main performance parameters of SZL series packaged steam boiler

Boiler type





Items

SZG0.5-0.7-AII

SZL1-1.25-AII2

SZL2-1.25/1.6-AII2

SZL4-1.25/1.6-AII2

SZL6-1.25/1.6-AII2

SZL6-2.5-AII

SZL8-1.25/1.6-AII

Rated output(t/h)

0.5

1

2

4

6

6

8

Rated steam pressure(Mpa)

0.7

1.25

1.25/1.6

1.25/1.6

1.25/1.6

2.5

1.25/1.6

Steam temperature

Saturated

Saturated

Saturated

Saturated

Saturated

Saturated

Saturated

Combustion mode

Double reversal combuation fixed grade

Chain layer combustion

Chain layer combustion

Chain layer combustion

Chain layer combustion

Chain layer combustion

Chain layer combustion

Applicable coal(bituminous coal)

AII AIII

AII AIII

AII AIII

AII AIII

AII AIII

AII AIII

AII AIII

Grate area(m2)

0.93

1.29

3

4.6

7.23

7.23

9.9

Heated surface of boiler proper(m2)

22.59

33.39

64.6

115.3

137.6/157.6

137.6

224.1

Heated area of economier(m2)

/

10.78

18.48/37

37/55.4

55.5/74

130.8

105/130.8

Maximum size of transportation cargo(L x W x H)mm

2900x1800x2980

4080x2150x2862

5960x2690x3462

6510x3130x3462

7830x3340x3462

7830x3480x3462

8820x3340x3462

Maximum weight of transportation cargo(t)

6

15

20/22

28/30

40/42

42

45

Installed exterior size(L x W x H)mm

3000x1800x3000

5855x3550x3062

7320x4963x3862

8260x5197x3862

10040x5332x3862

10040x5332x3862

11157x5332x3862





Price Terms︰FOB Qingdao
Payment Terms︰TT/LC
Packing︰suitable for sea shipping
Lead Time︰30 days
Standards Certificate︰CE ISO9001
