Engineers available overseas electric concrete pole making machine
Product Description:
Engineers available to service machinery overseas After-sales Service Provided electric concrete pole making machine
concrete pole making machine ( Order can be customized )
|
Inner diameter of top end (mm) |
Length (m) |
Tread (m) |
Running Wheel Diameter (mm) |
Length (m) |
Tread (m) |
Running wheel diameter (mm) |
100 |
6~7 |
2 |
600 |
/ |
/ |
/ |
130 |
6~8 |
150 |
6~11 |
170 |
7~12 |
190 |
7~15 |
15 |
2 |
650 |
230 |
6~10 |
12 |
270 |
6 |
9 |
270 |
6 |
9 |
283
|
6 |
/ |
/ |
310 |
6~10 |
650 |
/ |
/ |
350 |
6 |
9 |
700 |
390 |
6 |
700 |
9 |
750 |
430 |
6 |
750 |
/ |
/ |
470 |
6 |
780 |
/ |
/ |
510 |
6 |
800 |
9 |
850 |
550 |
6 |
850 |
/ |
/ |
Overview of concrete pole machine :
Concrete pole machine comprises base,supporting wheel,bearing base,controll cabinet and driving shaft,it is the crutial device for manufacturing and precasting concrete pillar.Our telephone pole centrifugal machine is fabricated with wholly shaft connection,preventing the prestress intensification caused by the change of shaft diameter,and causing shaft breaking;the flange of the bearings can be disassembled,so it would be more convenient to repair and maintain

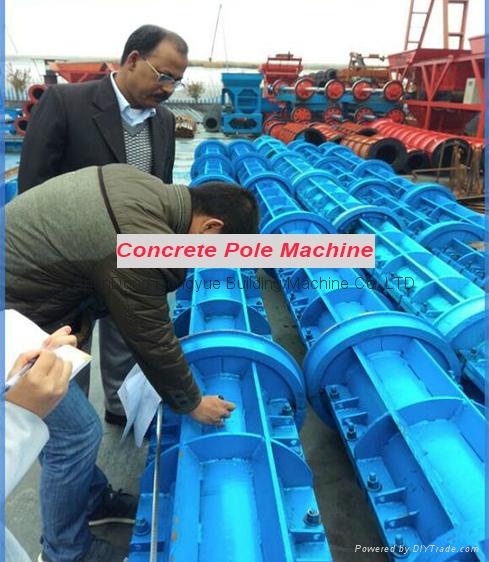

Introduction of concrete pole mould :
Concrete pole mould is semi-circular double-segment structure,classified cylinder mould and conical mould two catagories,specification:conical mould:diameter Φ100-Φ470mm,length 6-15m,taper1:75;cylinder mould:diameter Φ200-Φ400mm,length over 6-15m;steel mould can be applied to both prestressed and reinforced concrete poles producing
