JZC500 reversed rolling concrete mixer,industrial cement mixing machine

  • JZC500 reversed rolling concrete mixer,industrial cement mixing machine
  • JZC500 reversed rolling concrete mixer,industrial cement mixing machine
  • JZC500 reversed rolling concrete mixer,industrial cement mixing machine
  • JZC500 reversed rolling concrete mixer,industrial cement mixing machine
  • JZC500 reversed rolling concrete mixer,industrial cement mixing machine
Model No.︰JZC500
Brand Name︰dongyue
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 set
Share on:

 Total 31 Related Items
Prev1415161718Next

Product Description

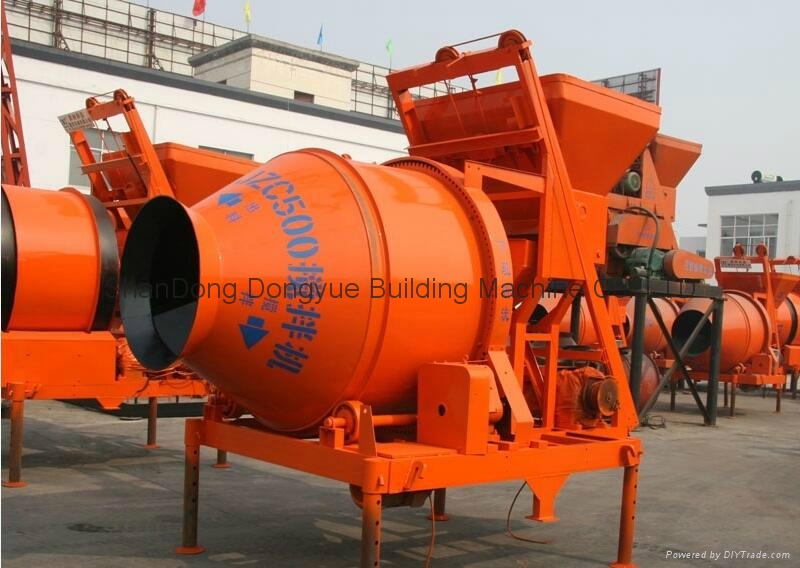

JZC500 reversed rolling concrete mixer,industrial cement mixing machine

JZC Concrete Mixer

 1.JZC mixer Introduction

1) JZC series of concrete mixer is a kind of gravity stabilized two cone reverse tilting concrete mixer, the Mixing  roller is  driven by gear wheels, when it does positive rotation, the machine is stirring,or it will discharging, this mixer can stir plastic concrete and semirigid /hard concrete. It applies for construction site, road,bridge projects and all kinds of concrete componet factory.

2)The JZC series of mixers are designed and manufactured according to Concrete Mixer Technological Conditions GB9140-88,It have absorb Germany design experience ,then combine china owned conditions to produce it is an advanced machine which has reasonable structure, high productivity, good mixing quality, graceful outline and convenient relocation, etc.

3)The series of mixers include five main models: JZC250, 300, 350, 500 , they are easy to move to different construction sites , also easy to maintain.



2. Main Parameter:

Model

JZC250

JZC350

JZC500

Operation  performance

Discharging capacity

250L

350L

500L

Feeding capacity

320L

560L

800L

Productivity

6-8m3/h

10-14m3/h

18-20m3/h

Mixing roller speed

17r/min

14r/min

13r/min

Max.aggregate diameter

60mn

60mm

60-80mm

Precision

error ≤ 2%

error ≤ 2%

error ≤ 2%

Motor

Mixing motor

4kw

5.5kw

11kw

Elevator(optional)

------(4kw)

------(5.5kw)

------(5.5kw)

Pump motor

0.55kw

0.55kw

0.75kw

Tyre specification

6.50-16

6.50-16

7.50-16

Max.dragging speed

20km/h

20km/h

20km/h

Overall dimension

(L×W×H)

2260×1990×2750mm

2766×2140×3000mm

5226×2200×5460mm

FOB Qingdao price ( mini order 2 set for one 20GP container)









3.Advantages of concrete mixer:

1. Government standard material ,Q235B and Q345 ,from QiGang steel group

Leading professional design and manufacture;

2. lower powder consumption ,Excellent skills assured the accuracy between blades and cylinder;

3. Noise reduction;

4. Prolong the life of blades and scale board;

5. High quality and reliable performance;

6. Safe and long service life. 24 hours/day service

4. Guarantee ,standard

A: Guarantee is 1 year (12 months except wearing parts). B: standard : ISO and CE.







Payment Terms︰T/T, L/C
