Product Description

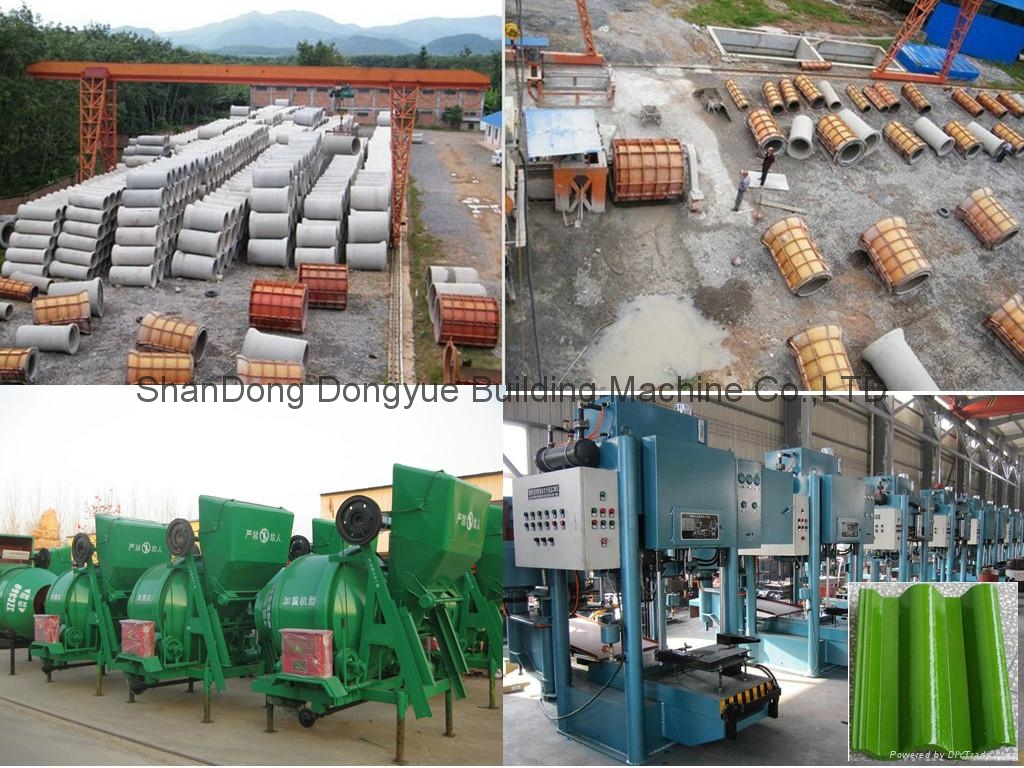

Cement/Concrete roof tile machine/concrete roof tile making machine



Brief Introduction of DY128 roof tile machine

DY128 roof tile machine is a new and popular equipment in modern society for mkin cement and concrete color roof tiles. DY128 roof tile macine adopts advanced technology like PLC conbies hydraulic pess. This roof tile making machine has better mechanism capability and economic benefit.DY128 roof tile machine is widely used in building and ancient architecture,etc.

1. Fast forming speed,high production. Four-Post Type Tile Making Machine features PLC automic control, host machine interface and dependable performance.

2. After the mortar is mixing-rolled,the concrete tiles fabricated features is perfect, various style,high density, high intensity and accurate size, so that the concrete roof tiles can meet the needs of different constructions.DY128 concrete roof tiles are best among concrete products

3.The DY128 roof tile making machine can be used for muti usage.By changing roof tile moulds, the equipment can produce various styles of main roman roof tiles,double roman roof tiles,ridge tiles,edge tiles and ditch tiles.AlsoDY128 roof tile machine can produce different styles of high grade concrete roof tiles,floor tiles and paver bricks.



Features of cement roof tiles:

Part 1:The parameter for concrete cement roof tiles:

Normally size:424(L)*337mm(W)

9.1pcs/m2

Weight: 4kg/PC,

Appliance grade: 0°90°,

Proportion: 2.2

Water absorption rate ≤6

Folding strength 2000N



Part 2: The feature of concrete roof tiles



1. Unique Waterproof Structure .The tiles which are formed by DY128 roof tile machine can make the rain discharged more smoothly and faster,even if it is used in a horizontal roof,there will be no rain counterflow case.

2. The tiles produced by  DY128 roof tile machine with high strength,the pressure is about 1.25 million Newton,and the overall dimension is very accurate(425*337mm).9.1pcs are used per square meter.The rupture strength is more than 200 kilogram,so the constructor can totally walk on the paved roof.

3. Extra Intensity.Whether vertical paved or horizontal paved,construction is always convenient.It doesn’t need to hang battens if on the common slope roof.The tiles can be cut conveniently by cutting machine at any angle.

4. Excellent Heat-Shielding Performance.The heat insulation and frost resistance of tiles are better than other tiles.

5. Extra Windand snow resistance.Because the tile is produced by high pressure,it’s penetration resistance is very well.It is usually used in long-term rain and snow area.

6. Convenient Construction



Working process of roof tile making machine production line:



1. Frist step,put  cement and sand into the bucket elevator, then transport automaticlly  into the rolling mixer,at the same time,you must add some water into the mixer to fully mix the raw material.

2. Second step,after mixing, the mixture concrete raw material are transported into the dosing feeder,then measurable mixture lay down the raw material into the roof tile press machine.

3. Third step,concrete tile can be formed by high pressure and hydraulic press,the pressure is about 125-130 tons. So the produced tile is very stable and strong.

4. Fourth step,the pressed tile needs to dry for about 10 days.Then you can paint the roof tiles.

Main Technical  Parameter of roof tile machine:



Model

DY128

Overall Dimension

3100×1600×2480 mm

Moulding Cycle

8-10 s/  6-9pcs/min

Moulding Pressure

125-130Ton

Weight of Main machine

5T

Equipped power

7.5 kw

Mixer power

5.5KW

Production Capacity

3000-4000 pcs/day

Tile Size

424×377 mm







Payment Terms︰T/T,L/C
