Steel profile rolling forming machine, roofing tile roll forming machine

  • Steel profile rolling forming machine, roofing tile roll forming machine
  • Steel profile rolling forming machine, roofing tile roll forming machine
  • Steel profile rolling forming machine, roofing tile roll forming machine
  • Steel profile rolling forming machine, roofing tile roll forming machine
  • Steel profile rolling forming machine, roofing tile roll forming machine
Model No.︰DY1100/1120
Brand Name︰DONGYUE
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 set
Share on:

 Total 68 Related Items
Prev3031323334Next

Product Description

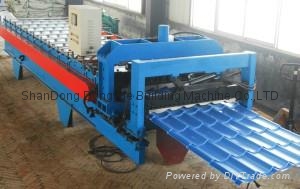

Steel profile rolling forming machine, roofing tile roll forming machine



DY model Metal tile forming machine introduction

1.DY model steel tile forming machine working process :

DY model steel tile forming  machine is new and high efficiency model machine system ,it absorb Europe technology and experience ,and produce different width and shape tiles .

Working process :





Plate coil open —feed to roll forming machine—

computer control form step by step—hydraulic control system—form cutter-discharge table

2. tile roll forming machine main parameter

( reference,could be change according client requirmenets)

No.

         Metal roof tile roll forming machine,purline forming machine,door frame forming machine

Ridge cap forming machine

1

Suitable material

Color steel sheet ,galvanized steel sheet, aluminum sheet

2

Width of material

1000mm/1100/1250mm or customized

6

Normal thickness of material

0.3-0.6mm, customized

2

Working speed

8-10m/min, can be adjust

3

Main motor power

4kw with cycloidal reducer

4

Hydraulic station power

4kw, depend on different model requirement

5

Electrical control system

PLC control system

7

Shaft diameter

70mm

8

Roller quantity

Up layer:10-16 rows,depend on products(double layers/single layer)

10

Dimension

7600x1500x1510mm

11

Reference Weight

About 5.8 T

12

Voltage

380V 3phase 50HZ or as the customer's requirements

13

Material of roller

High grade 45# forged steel plated with hard chrome plating

14

Material of cutting

Cr12 mould steel with quenched treatment

15

Working shift

 1-3 shift

16

Workers requirement

1-3 workers only



 3. tile roll forming machine Advantage :

(1) Government standard material ,  45# forged steel , Cr12 mould steel with quenched treatment Q235B and Q345 .

(2) lower powder consumption

(3) special long lifespan ,usually 1.3-1.5 times longer than common manufacturer

(4)lower maintenance ratio ,stable quality .

(5) 24 hours/day service .supply detailed installation service and maintenance help .

4. tile roll forming machine main Components and Technical Specification

No



Technical Specification

1

Manual Uncoiler



Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T

Inner diameter: 500-508mm

2

Feeding Table



Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

3

Main Roll Forming Machine



Material of rollers:45# steelroller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

4

Hydraulic System



Power:4kwHydraulic oil: 40#

hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

5

Computer Control Cabinet



The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use

PLC:EURA

6

Shearing Mechanism



It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

7

Spare Parts

  One Box

5. Guarantee ,standard,installation

A: Guarantee is 1 year (12 months ). B: standard : ISO and CE. C: we will send engineer to guide installation , client pay the cost.

Price Terms︰FOB TIANJIN
Payment Terms︰T/T ,L/C
Packing︰NUDE PACKING
Lead Time︰30 DAYS AFTER GET DEPOSIT
Standards Certificate︰CE
