Widely Used Three wheel concrete pole machinery,concrete pole machine

  • Widely Used Three wheel concrete pole machinery,concrete pole machine
  • Widely Used Three wheel concrete pole machinery,concrete pole machine
  • Widely Used Three wheel concrete pole machinery,concrete pole machine
  • Widely Used Three wheel concrete pole machinery,concrete pole machine
  • Widely Used Three wheel concrete pole machinery,concrete pole machine
Model No.︰DY23
Brand Name︰dongyue
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 set
Share on:

 Total 68 Related Items
Prev1920212223Next

Product Description

Widely Used Three wheel concrete pole machinery,concrete pole machine



Product Description

Prestressed concrete electric spun pole production machines mainly include centrifugal spinning machine and customized concrete pole mold .



Centrifugal spinning machine for concrete poles and concrete pole steel mould for prestressed spun concrete electrical pole are two main equipments, which are used for producing prestressed and reinforced concrete poles and other cement products with a variety of different diameter and length.

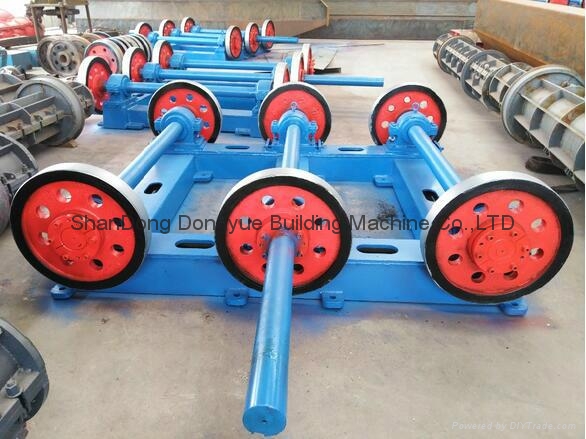

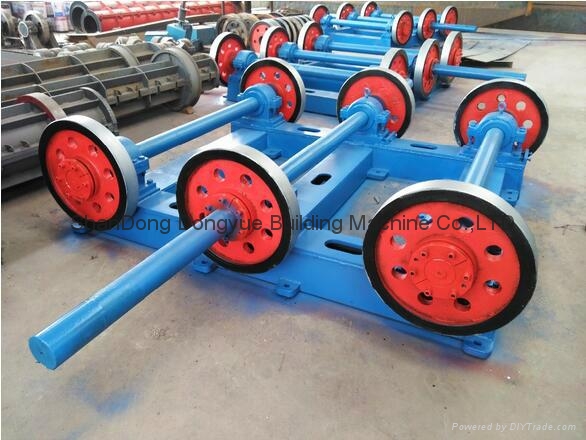

 Centrifugal spinning machine for prestressed spun concrete pole is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of prestressed concrete pole are good quality with high srengtht.

The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are well sealed and reliable, long service. Random electric control equipment is complete and easy to operate.



 Prestressed Concrete Spun Pole Mould is used for concrete electrical pole manufacutring. Its mainly manufacture technology is longitudinal tension by steel wires. During rotation of mould,  it can squeeze out the excess water contained in concrete under centrifugal force. Thus, it can greatly improve the concrete density and strength.



Feature

1.  Saving a great deal of steel, about 30~70% (employ cold-drawn steel wire can save 30%~60%; employ high tensile steel wire can save 40%~69%).

2.  Crack resistance can increase by about 3~5 times.

3. Rigidity increases 1~3 times.

4. Reducing the production cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).

5. Good durability, can delay the existence and expansion of cracks.



Technical Parameter



Pole Mold Diameter (mm) Spinning wheel pitch(mm) Running wheel diameter (mm) Mold Length (m)
150 2000 , 3000 600 7-12
170 2000,3000 600 7-12
190 2000,3000 650 7-15
230 2000,3000 650 6-9
300 equal diameter 2000,3000 600 6-9
350 equal diameter 2000,3000 650 6-12
30 2000,3000 650-780 6-15







Payment Terms︰T/T,L/C
